Description

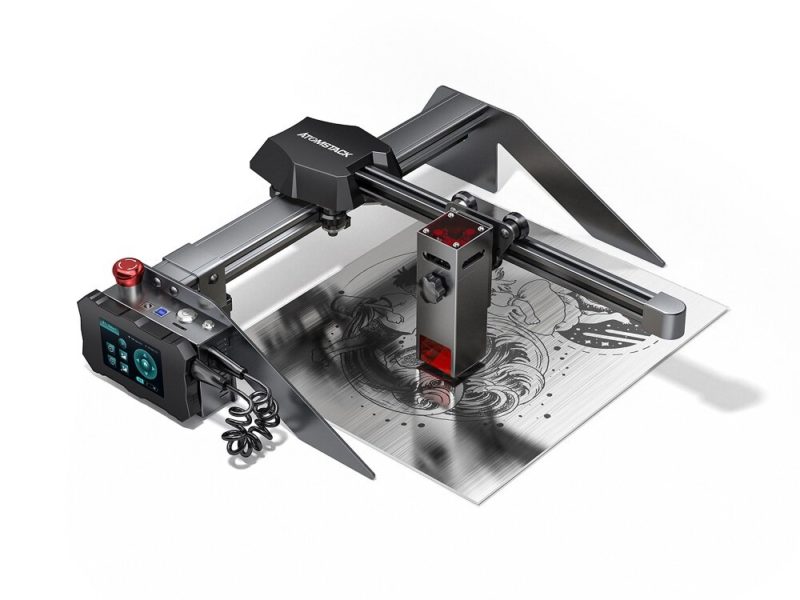

ATOMSTACK P9 M40 Laser Power 5.5W Portable Eye Protection Laser Engraving Machine, All Aluminum Alloy Structure, Quick Installation, Metal Engraving, 304 Mirror Stainless Steel Engraving, 15mm Wood Cutting, 15mm Acrylic Cutting, CNC Engraving, Wood Engraving, Slate Engraving, High Power Laser Cutting, laser cutting equipment, high energy laser cutting machine, CNC laser, CNC engraving, prend en charge la gravure hors ligne, avec bouton d’arrêt d’urgence, gravure laser de sécurité

spécification

Item model number: ATOMSTACK P9 M40

Print Size: Recommend Print Size: 220*250mm

Carving Objects:Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective

Electroplating layer and paint surface layer metal, 304 mirror stainless steel, glass, ceramics, cotton cloth, slate;

Cutting Objects:Cardboard, non-woven fabric, wood board, acrylic, some thin plastic board, sponge;

Puissance laser : 40W

Puissance de sortie laser : 5-5,5 W

Wave Length: 445 ± 5nm

Précision de gravure : 0,01 mm

Méthode de mise au point : laser à focale fixe, pas besoin de se concentrer

Housse de protection laser : protégez les yeux de l’utilisateur et empêchez les animaux de compagnie de saisir le point laser.

Logiciel d’exploitation : LaserGRBL, LightBurn, prend en charge le système Win XP / Win 7 / Win 8 / XP / Win 10.

Input Format: NC, BMP, JPG, PNG, DXF, etc.

Data transmission method: USB connection/SD card

Tension d’entrée : AC100-240V, 50/60Hz

Output Voltage: DC12V, 5A

Certification: CE FCC RoHS FDA PSE

Caractéristiques

1. Nouvelle conception acrylique de protection des yeux de filtre: The filter acrylic protective cover plays a good role in protecting your eyes, filtering 97% of ultraviolet light, you and the people around you do not need to wear goggles, you can also watch the laser engraving . Reduce your goggle expense and the inconvenience of wearing goggles.

2.Robust and easy-to-install structure design: The all-aluminum alloy anodized structure design makes the machine more durable and improves the accuracy of engraving. The portable all-metal structure, 85% pre-assembly, can be installed in 5 minutes.

3. Laser à focale fixe haute performance amélioré : no need to adjust the focus before engraving; The focal spot area of ​​the new laser is only 1/3 of the spot area of ​​other ordinary lasers, new laser combine precision engraving and high energy cutting at the same time. The laser power of the fixed-focus laser is more stable than the zoom laser.

Compatibilité 4.Wide: The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also for Mac system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF etc.

5.Precise scale lines axis :There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 410 x 400mm large area engraving interval can meet your various engraving needs.

6.Newly upgraded compressed laser: Newly upgraded ultra-fine compressed laser: The laser adopts 4-fold lens group collimation focusing technology, the optical power is 5-5.5W, the laser focus area is reduced to 0.08*0.08mm, and the high-density laser can easily cut 15mm thick Wooden board, 15mm black acrylic; it can directly engrave mirror stainless steel metal and ceramics, and can achieve the effect of 100W CO₂ laser engraving machine.

7. Tige de vis intégrale : The machine uses an integrated screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, which makes the movement of the laser more precise and the coupling more durable.

8.Nouveau laser avec bouton : It is more convenient and quick to adjust the height of the laser.

9. Prise en charge de la gravure hors ligne : P9 M40 configures the terminal control panel, supports offline engraving, you can carry out engraving work anytime and anywhere without being restricted by the computer.

10. The laser sintering temperature is up to 850℃

11. Bouton d’arrêt d’urgence : In the event of an unexpected situation, stop the machine at any time to make the engraving safer

12. Stopper: Yes

13. Commutateur de réinitialisation : Oui

14. Colorful gift box packaging: more beautiful, convenient for you to store or give as a gift to others

Note

●When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.

● Veuillez ne pas toucher l’émetteur laser avec votre main, ou il pourrait vous brûler la main.

● Veuillez éviter tout impact violent sur la machine.

● Les enfants de moins de 14 ans ne sont pas autorisés à utiliser ce produit et les enfants de plus de 14 ans ont besoin de la surveillance d’un adulte.

● La machine de gravure légère ne peut pas être appliquée directement sur un objet réfléchissant un miroir, ce qui pourrait blesser l’opérateur ou brûler le laser.

Emballage inclus

1 * Screw parts (Step2/3/4/5)

1 * Dust-free cloth

1 * Tool kit

1 * Fixed focus film

3 * Acrylic sheet

3 * Wood chips

1 * lecteur de carte

5 * Cable tie

1 * Accessories package

1 * Display assembly

1 * Display cable

1 * Adaptateur secteur

1 * câble d’alimentation

1 * Data line

1 * Metal cutting pad

1 * manuel

1 * Laser assembly

1 * X axis assembly

1 * Y axis assembly

2 * Support tripod

4 * Assembly block

1 * Desiccant
